Ai smart zoom and tracking function


TB01 uses the newly developed Ai smart zoom and portrait tracking function,The camera realizes intelligent tracking, with automatic zoom in, zoom out, and pan functions, Keep the subject always in the center of the screen, and communication efficiency is further improved.




High-performance DSP processor


The DSP processor of TB01 have made revolutionary progress on overall performance, power consumption and core area. It brings fast and smooth video collaboration experience and fully meet a variety of conference scenarios. Powerful codec capabilities can easily achieve 1080p video conferencing.







To see all


Equiped with 4K ePTZ camera with view angle 110°,it gives you big picture views with as close to real life quality as you can get. Low noise while taking every details in.






110° Wide-view angle


110° wide view angle, 4k HD lens, All the participants are clearly presented.

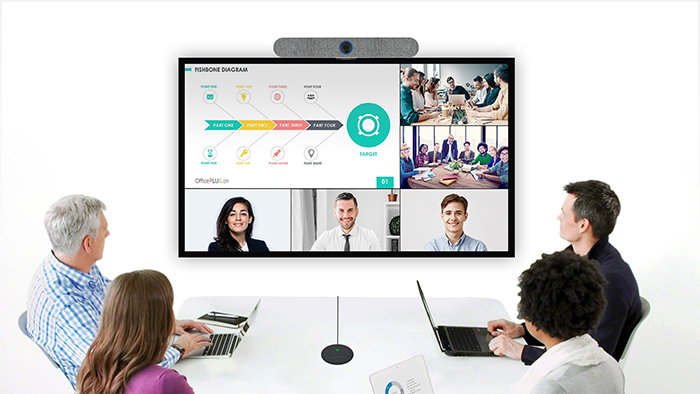

Make it happen, instantly


Simple to operate, just a click to join in communication. With help of whiteboard

and document sharing function, just greatly improve our communication efficiency.






Noise cancellation for clearer and more natural sound


Suppress environmental background noise from keyboard and mouse etc., while make speaker’s voice heard clearly.

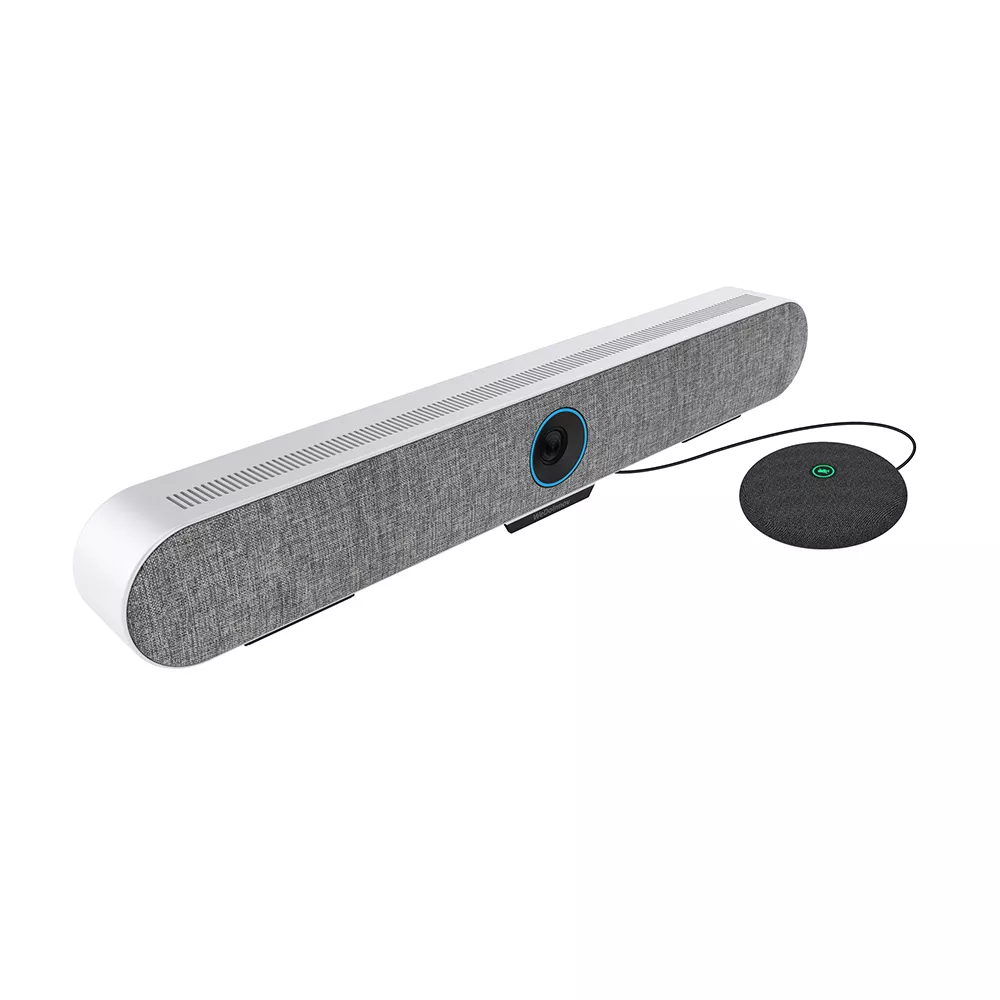

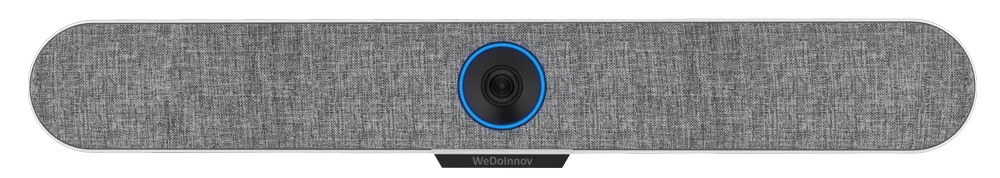

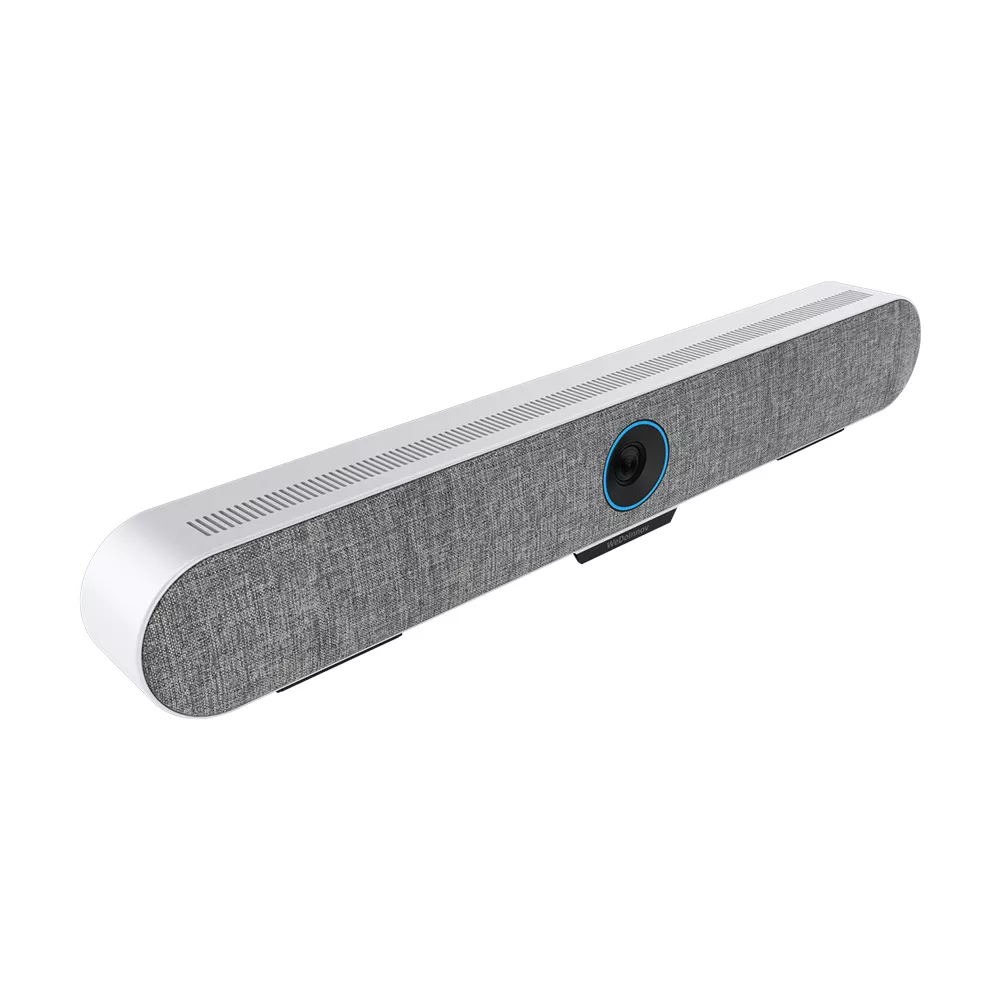

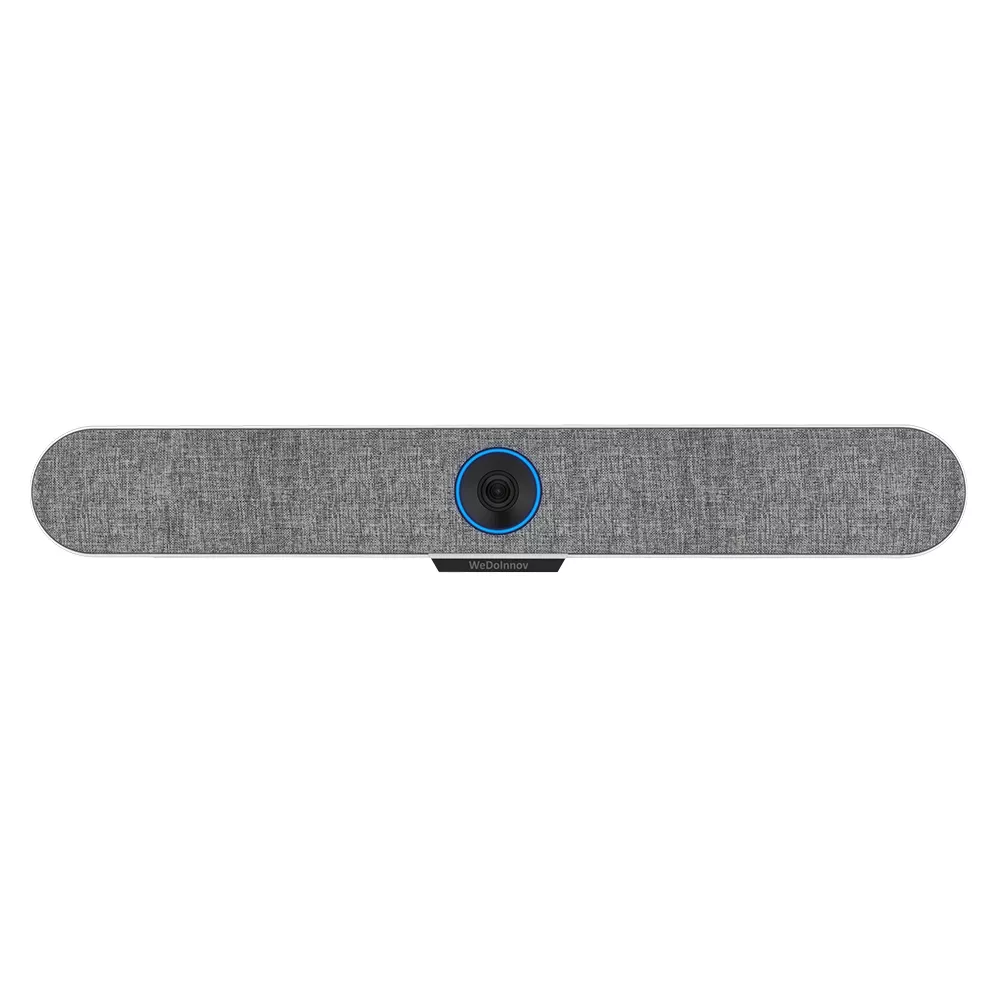

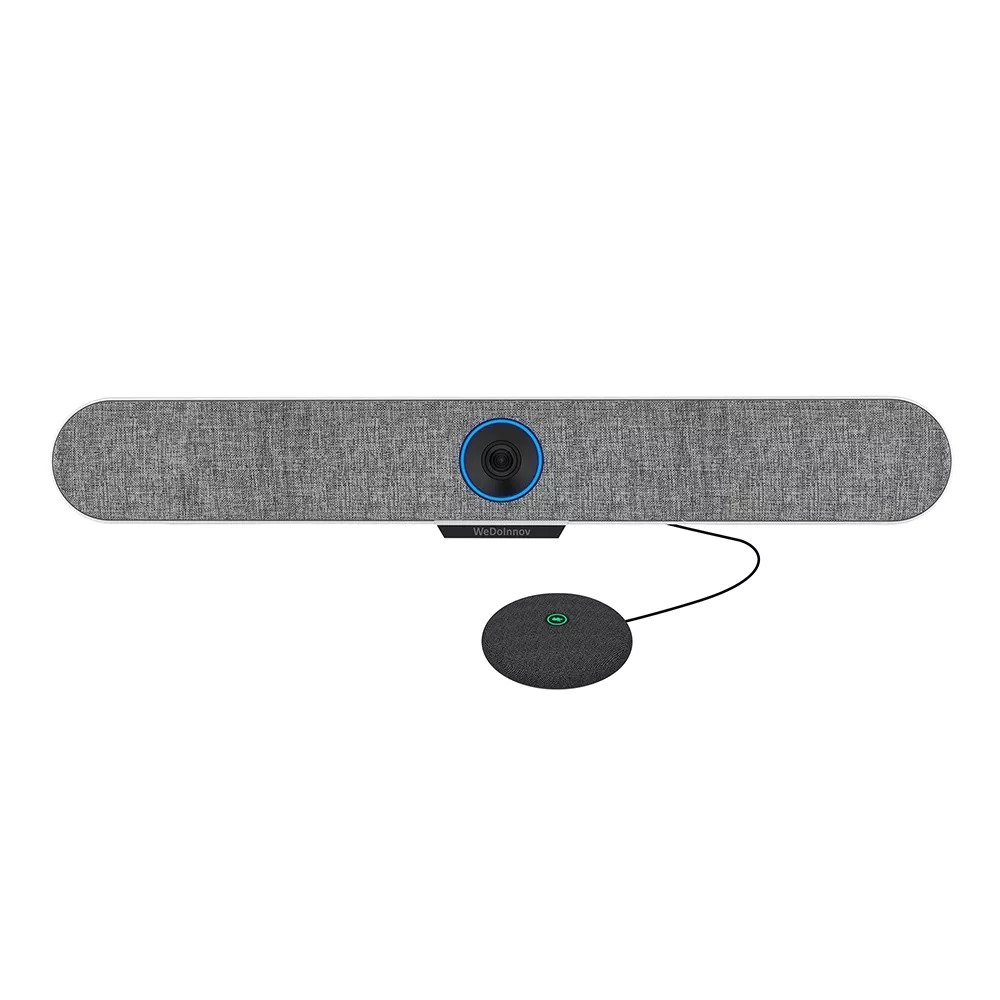

Product display
Product specification
Product model
TB01

Camera - 4K ePTZ Camera - View angle: 110° - Camera resolution: 4k30fps、 1080P30fps、720P30fps, etc.
Microphone Array - Built-in 4 Mic - Voice pick up range up to radius 16’ - Acoustic echo cancellation - Automatic noise suppression
DSP Audio - AEC technology - AGC (Automatic gain control) - Noise Reduction

Speaker Amplifier power:20w

Physical Interface • 1 x USB 3.0 Type-B port • 1 x Power interface • 1 x 10/100/1000 Mbps Ethernet port • 1 x Security lock slot

Other - Product size: 602.25mm X 94mm X 67mm - Wall-Mounted accessories - Indicator: Loop Rainbow LED Light Band - Power supply: DC 12V - Application: Enterprises Video Conferencing, Business Negotiations, remote education and training, Telemedicine and remote medical consultations. - Warranty: 12 months - Operating temperature: 0‒40°C - Relative humidity: 5‒95%, noncondensing - Storage temperature: -10‒70°C
Resources
V3.0 WeDoInnov TB01 Ai DataSheet EN.pdf
909KB
